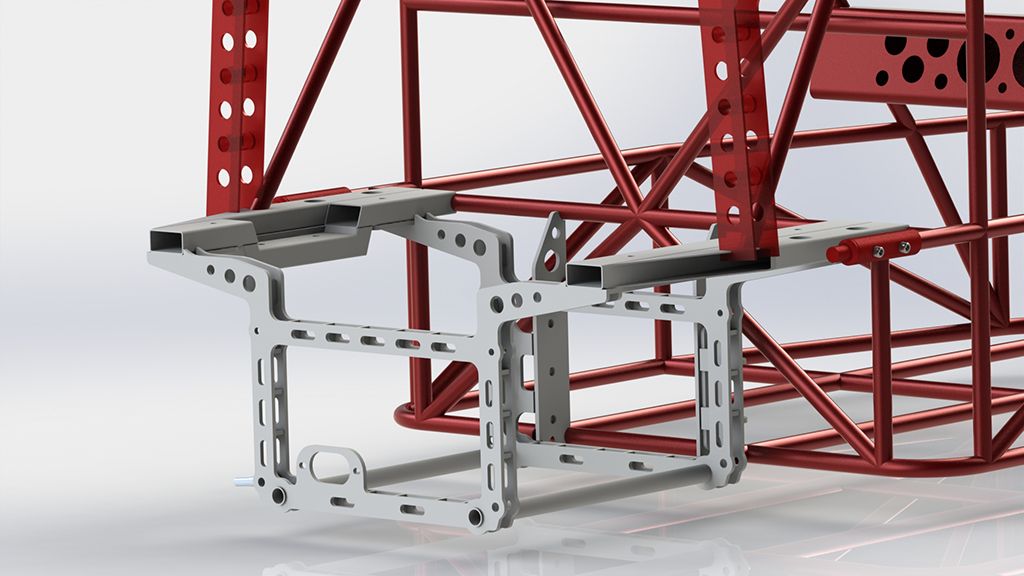

i think i have almost nailed the subframe design now - here it is in the rear of the chassis but with the rear cage off:-

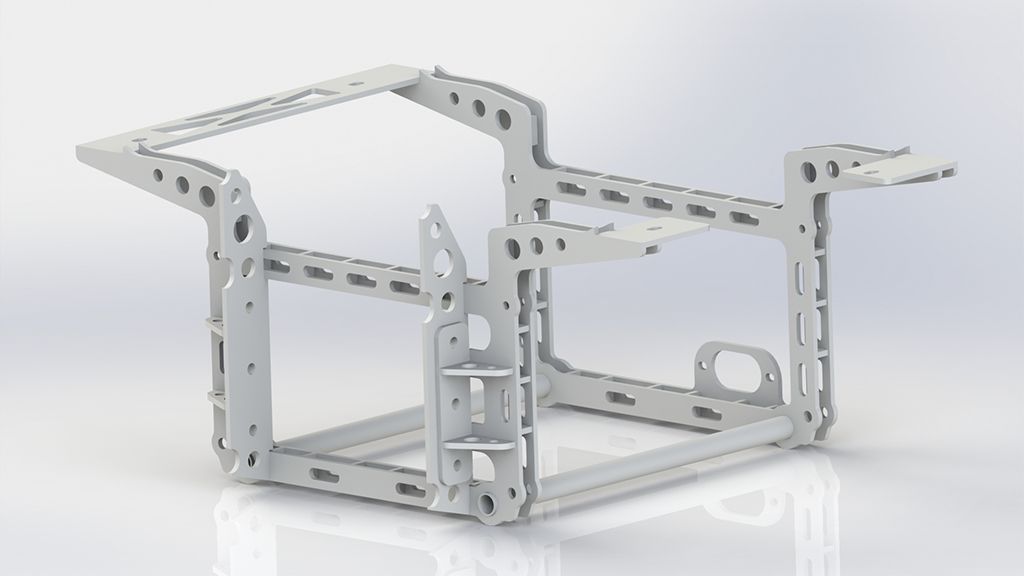

subframe complete without the frame - the oval cutout at the front is for the dog-bone engine stay from the golf.

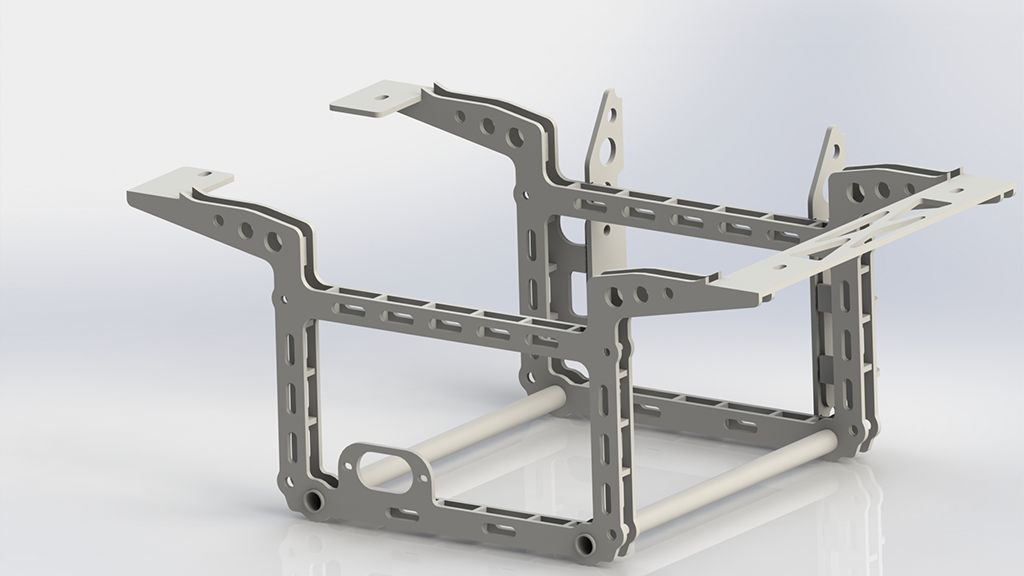

a closer look at the mounting onto the chassis at the rear of the subframe (or the front whichever way you look at it)


just working on the design for the new lower arms that will be using 16mm rose joints instead of the 12mm ones I used before!!
